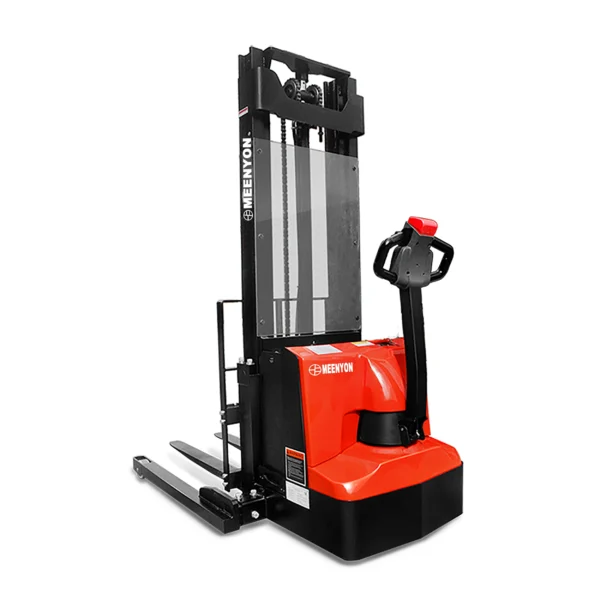

ES12-25WA 1.2T Electric Walkie Straddle Stacker (Wide Leg)
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ES12-25WA | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1200 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 1150 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2110 |
| 4.4 | Standard max lifting height | h3 (mm) | 3220 |
| 4.15 | Fork drop height | h13(mm) | 60 |
| 4.19 | Overall length | l1 (mm) | 1947 |
| 4.21 | Overall width | b1/ b2 (mm) | 1120/1220/1320/1420 |
| 4.25 | Fork outside distance | b5 (mm) | 200-760 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2405 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2400 |
| 4.35 | Turning radius | Wa (mm) | 1490 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 5.0/5.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.127/0.23 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/210Ah |
