Forklifts
4 Wheel Electric Forklift for Off-Road and Heavy-Duty Operation
Product Selling Points:
● New counterweight, upgraded image;
● Smaller body, flexible operation;
● Green lithium battery, charge and use at any time;
● Strong and durable, suitable for off-road and heavy-duty operation.
Product specifications
| Item | Name | Unit (Code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | ICE302B2 | ICE252B2 | ICE352B2 | ICE322B2 | |
| 1.3 | Power | Electric | Electric | Electric | Electric | |
| 1.4 | Operation | Car type | Car type | Car type | Car type | |
| 1.5 | Rated load | Q (kg) | 3000 | 2500 | 3500 | 3200 |
| 1.6 | Load center distance | c (mm) | 500 | 500 | 500 | 500 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 4080 | 3770 | 4560 | 4270 |
| Tires, chassis | ||||||
| 3.1 | Tire type, drive wheel/carrier wheel (steering wheel) | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | |
| Size | ||||||
| 4.4 | Max lifting height of standard frame | h3 (mm) | 3000 | 3000 | 3000 | 3000 |
| 4.7 | Top guard (cab) height | h6 (mm) | 2160 | 2160 | 2190 | 2160 |
| 4.20. | Length to vertical face of fork | l2 (mm) | 2665 | 2503 | 2726 | 2726 |
| 4.21 | Overall width | b1/ b2 (mm) | 1230 | 1154 | 1230 | 1230 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 4118 | 3985 | 4170 | 4170 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 4318 | 4195 | 4370 | 4370 |
| 4.35 | Turning radius | Wa (mm) | 2437 | 2290 | 2484 | 2484 |
| Performance parameter | ||||||
| 5.1 | Travel speed, full / no load | km/ h | 11 / 12 | 11 / 12 | 11 / 12 | 11 / 12 |
| 5.8 | Max climb, full / no load | % | 15/15 | 15/15 | 15/15 | 15/15 |
| Motor, Power unit | ||||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 80/205 | 80/150 | 80/280 | 80/205 |
advantage
Available for heavy-duty conditions
High-strength box-type frame of internal combustion vehicles, IPX4 waterproof for the entire vehicle, and can be used indoors and outdoors.
=
Available for off-road
High ground clearance, easy to carry even on uneven roads.
Easy to maintain
Use parts that are common to internal combustion vehicles as much as possible, which can greatly reduce the difficulty and cost of maintenance.
Safer
Low-voltage lithium batteries instead of high voltage eliminate the risk of electric shock and leakage, reduce the difficulty of maintenance, and greatly reduce the cost of battery electrical replacement.
Long life
Good ventilation conditions in the car, extending the battery life.

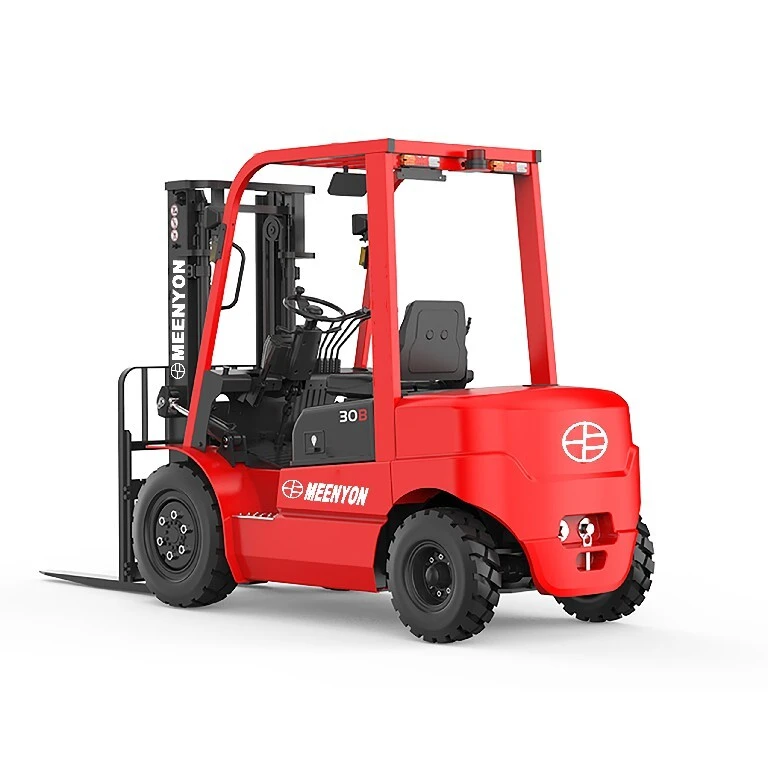

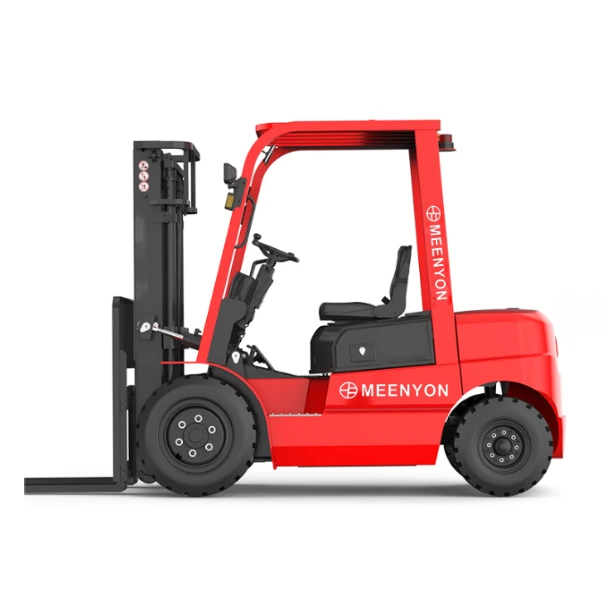

product display
